ROFLEX SOLIDO 100

Applications

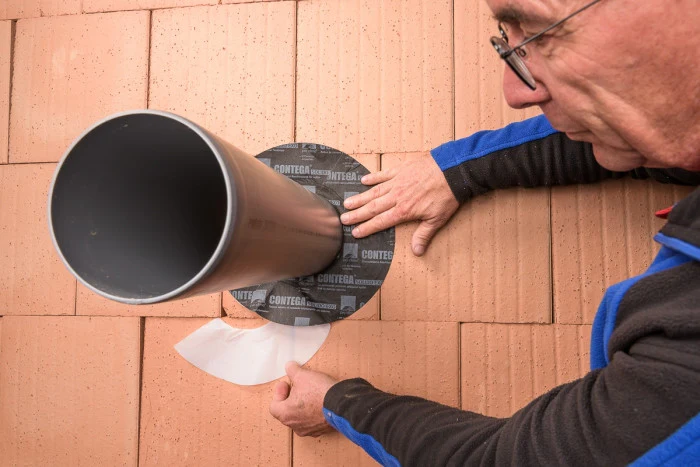

ROFLEX SOLIDO^® are highly flexible EPDM gaskets for air sealing and waterproofing round pipes and ducts. Quick, easy and adaptable sealing of perpendicular pipe penetrations. ROFLEX SOLIDO^® includes CONTEGA SOLIDO EXO^® tape for reliable waterproofing and adhesion to all common building materials and Pro Clima membranes.

Advantages

• Airtight sleeves made from EPDM with built-in SOLIDO acrylic adhesive (CONTEGA SOLIDO EXO)
• Split release paper for fast and secure application
• Creates instant, airtight connections to round ducts and pipes that enter through airtight membranes, vapor retarders and WRBs
• Pre-cut hole in flexible EPDM saves time
• Forms tight fitting sleeve, without causing a protruding bulge (saving space)
• CONTEGA SOLIDO EXO adheres to concrete, masonry without primer and can be plastered over
• Pipe remains adjustable after installation- the joint remains sealed
• Excellent values for IAQ, low VOC per AgBB/ISO 16000

Substrates

• Exceptional bonding to masonry, concrete, CMU solid wood, and all Pro Clima membranes
• Adheres to many porous, rough and uneven substrates without primer
• Perform and adhesion test to confirm suitability of substrate
• For straight pipe penetrations, in case of acute pipe angles (>3:12) use ROFLEX gaskets

Properties

• Penetrations: for one pipe pass-throughs
• Material: EPDM rubber gasket with built-in CONTEGA SOLIDO EXO solid acrylic adhesive tape
• UV/Weather exposure: 3 months
• For air-tight sealing according DIN 4108-7 (ACH50 < 1.5)
