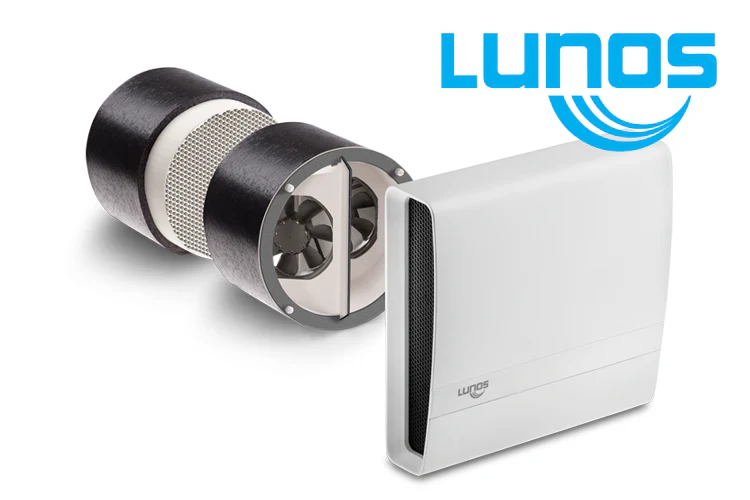

Lunos eGO kit

Applications

The Lunos e^GO is an all-in-one room ventilation system with a built-in regenerative heat recovery core. The e^GO is ideal for bathrooms and single small spaces that require continuous heat recovery ventilation. We recommend using eGO along with e² HRV units to complete your heat recovery system.

Advantages

• Provides continuous ventilation without the need for duct-work and is installed directly in the exterior wall
• Quiet operation, suitable for bathrooms/kitchens
• Greater than 86% tested heat recovery efficiency for standard size systems

Properties:

• Ventilation rates: 3-12 CFM in heat recovery mode, up to 27 CFM in exhaust mode
• 300 SF maximum room size
• Sound levels: 20–43 dB(A) at 1 meter / 45 dB(A) at 1 meter in exhaust mode (fans are more audible than e² units)
• Heat recovery efficiency:
  • Standard Fans: >86% (tested with DIN 308 / DIBt protocol)
  • Short Fans: 81%
• Humidity recovery: 20%
• Specific fan efficiency: 0.17 – 0.2 Wh/m3 (0.29 (W/cfm)
• Filter: G3 (MERV 5) or optional pollen F5 (MERV 9-10)
• Includes one controller: 5/UNI-FR No.40269 controller. One eGO per controller
• Installation sleeve included – can be pre-installed in wall before insulating/during construction
• Creating a quiet heat recovery ventilation system without the need for ducts and balancing, with specific fan efficiency that is second to none.
• 475 Rotary Switch is recommended for occupant control (sold separately)
