Brink FLAIR ERV - HRV

Applications

The FLAIR heat / energy recovery ventilation systems have the highest efficiency ratios in North America as Certified by PHI, while also being one of the most compact units in its class. Systems are quiet, provide MERV 13 filtration, have very high heat recovery efficiencies (up to 93% per HVI) and are super-efficient - utilizing next gen ECM motors which allow you to optimize your high performance design.

Advantages

• Highest heat and energy recovery efficiencies
• Super-efficient, next gen ECM motors (0.21W/m3*hr)
• Even at maximum flow, the noise level can be kept inaudible in rooms
• Everything included in standard unit: pre-heater and dry "ball" siphon
• Highly insulated housing

Properties

• All Brink FLAIR units are Certified to UL 1812 & CSA 22.2
• Brink FLAIR units come in four sizes, each named for the metric volume of air they can deliver. All are available as HRV or ERV:

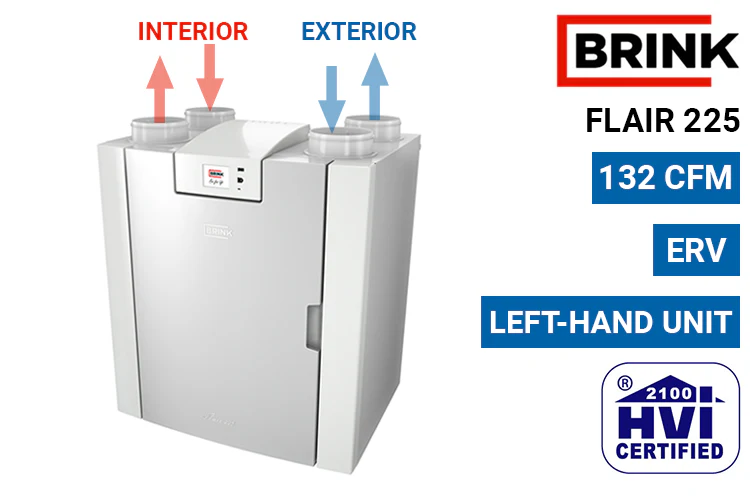

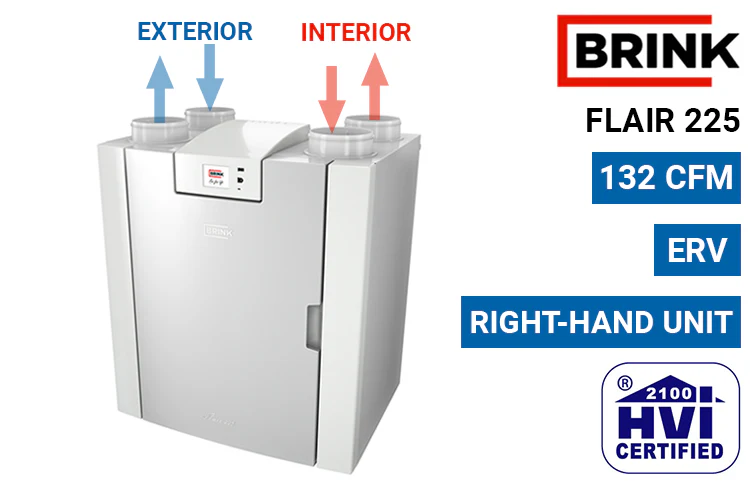

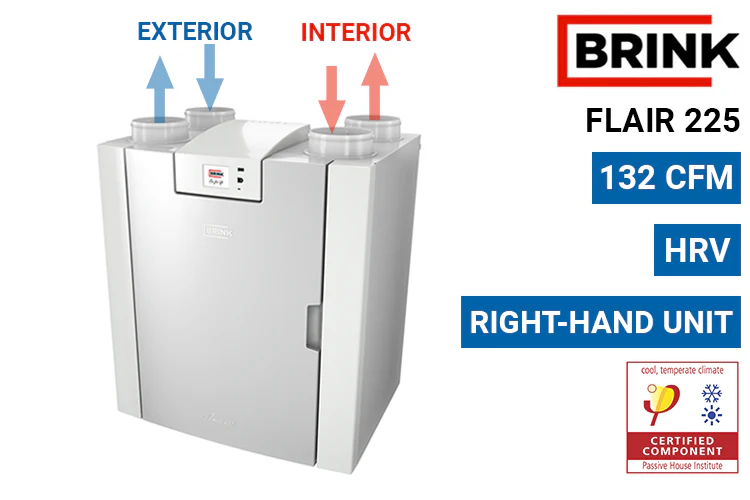

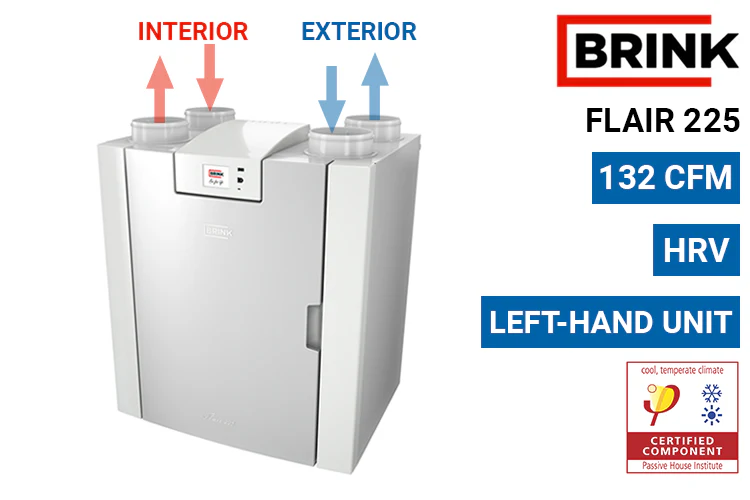

  • FLAIR 225: 132 CFM (225 m3/hr)

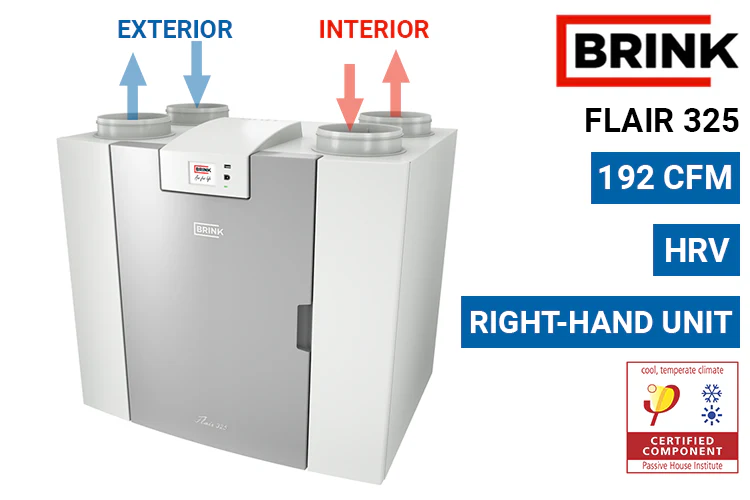

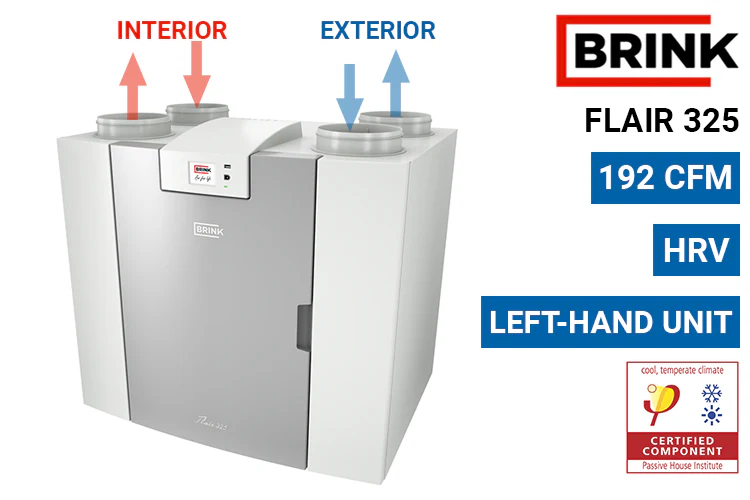

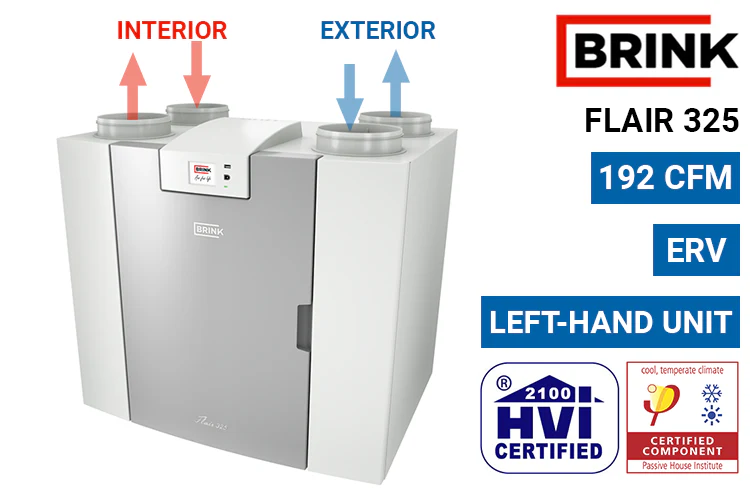

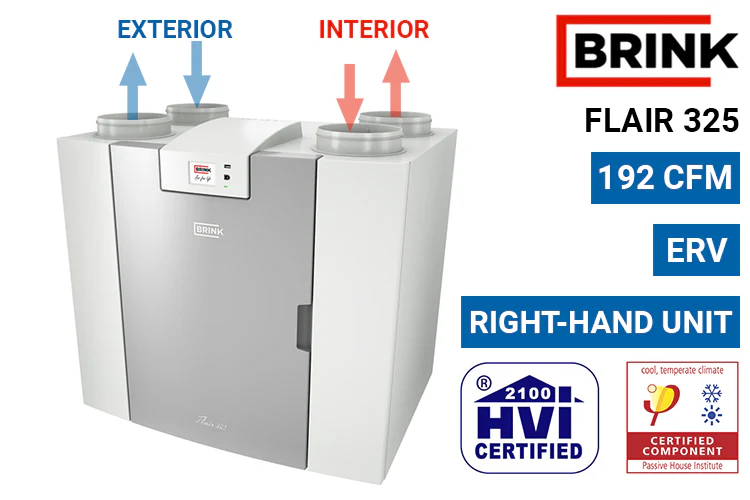

  • FLAIR 325: 192 CFM (325 m3/hr)

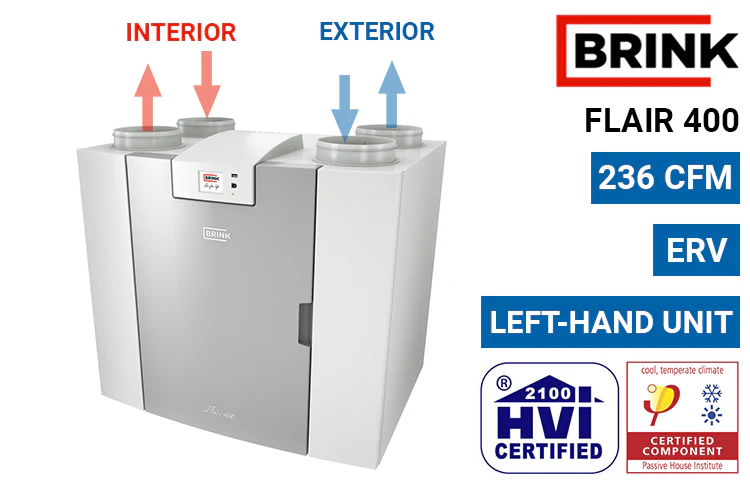

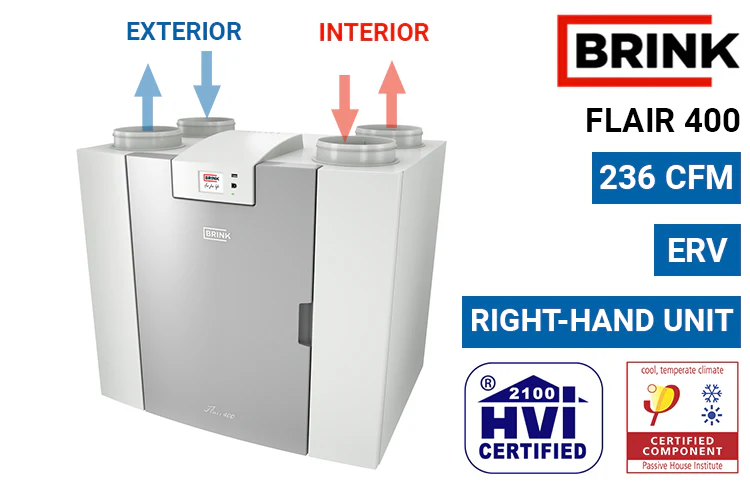

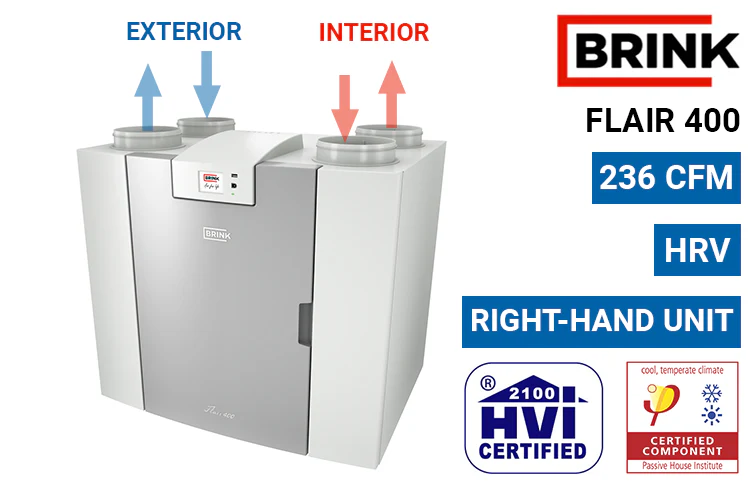

  • FLAIR 400: 236 CFM (400 m3/hr)

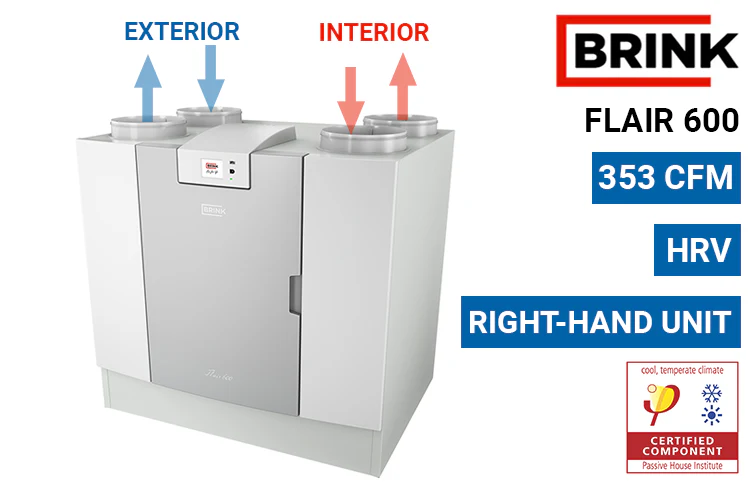

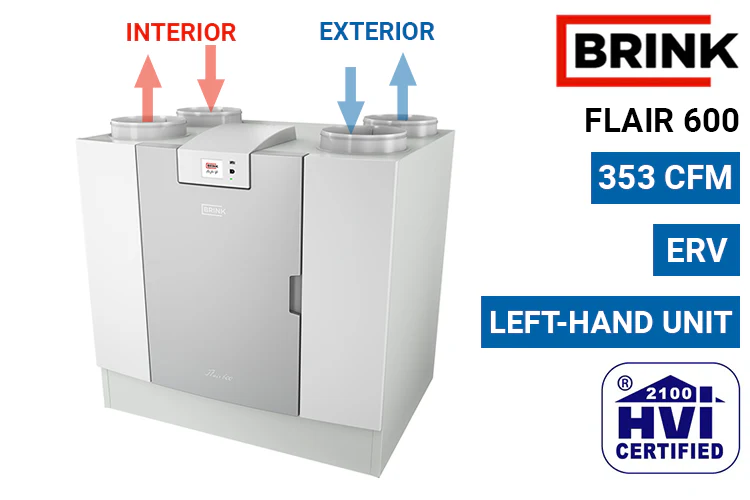

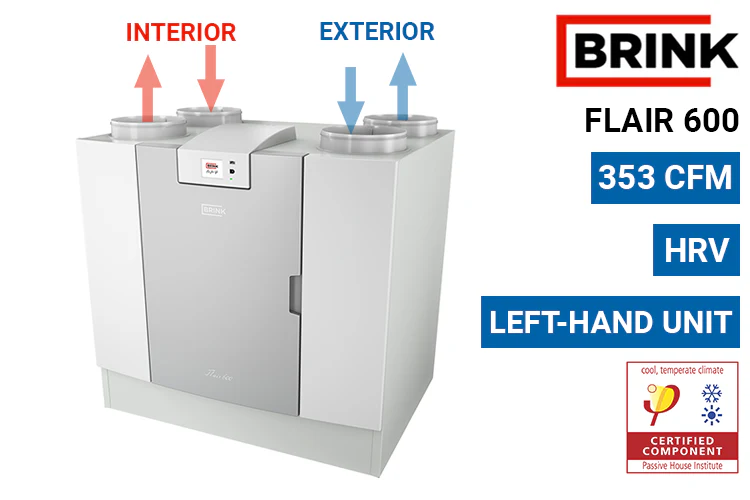

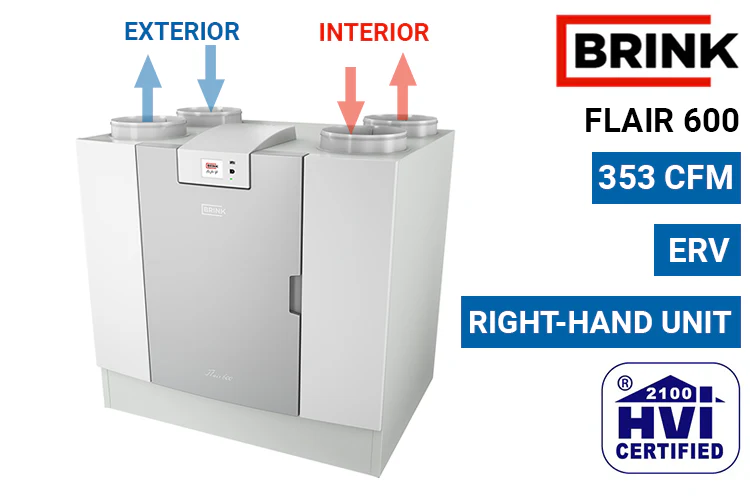

  • FLAIR 600: 353 CFM (600 m3/hr)
• Most efficient HRV/ERV option: PHI Efficiency up to 91% with up to 77% humidity recovery
• MERV 13 Filters
• Most accurate constant flow regulator, for most accurate balancing of supply and exhaust air flows
• Standard unit includes connectors for CO2, RH and boost switches
• 100% bypass included, for free shoulder season/night time cooling (no heat recovery)
• Very easy to maintain - only one tool needed
